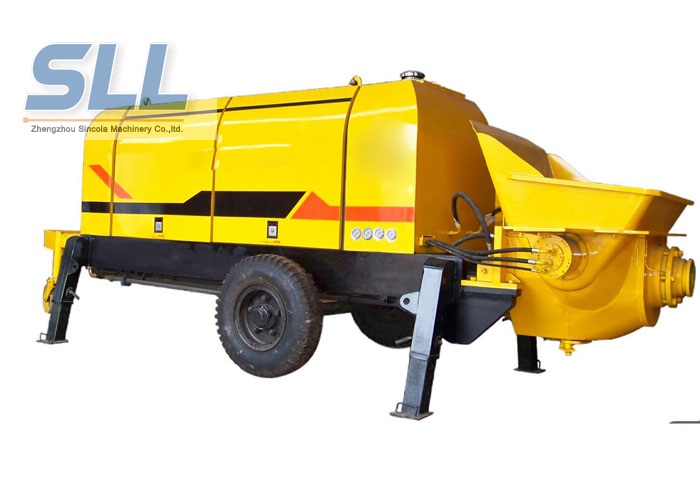

Capacity 40 m3 / h mobile cement mortar pump 6 / 13MPa with longer service life

Introduction:

BS40-13-45 not only has the characteristics of similar high-level pump mortar, can also directly used for mortar spraying operation function, large capacity, high efficiency, large area of the spraying operations of metope,suitable for high-rise building wet mixing mortar, and used for dry mortar, most importantly is the machine suitable for more than 100 meters of high-rise building mortar spraying, transmission joint operation ability, integrating transportation, spraying.

Features:

1. High efficiency hydraulic double cylinder piston pump system, electrohydraulic combined control, adopts S tube valve distribution form, glasses plate and the floating ring using cemented carbide cutting, high wear resistance. Flow more smooth, more stable spraying. Using automatic centralized lubrication system, longer service life of mortar piston, and further optimize the pumping flow path, reduce pumping resistance.

2. Advanced hydraulic system gear automatic adjustment technology, working condition of intelligent
matching displacement. High reliability of components, give priority to with variable pump.

3. Accurate control system adopts the intelligent controller, high speed and reliable running. Phase sequence automatic detection, the start is more reliable. The remote wireless remote control, convenient operation.

Parameter:

Advantage:

1. S pipe valve is adopted for direction switching with good sealing and long service life.
2. S pipe valve is installed with floating wear-resisting ring which can compensate abrasion automatically.
3. High exit pressure can satisfy pumping requirements for high-rise buildings.
4. Fine stone concrete can be pumped, and the maximum grain size is 20mm.

5. Hydraulic system adopts wind cooling heat dissipation which is convenient and no need to connect with water source.
6. It has reverse pumping function which can minimize pipe blocking.
7. Centralized lubrication system can extend service life of rotating parts effectively.
8. Electric part adopts PLC control which has the optimum operating feature.
9. Electric cabinet is installed with wired remote control handset which is convenient for operation.
10. Material loading height is low, it can be easily united with machine set.
11. Guide pulley is installed on the machine which is flexible and convenient for moving and location.
12. Integral dismountable screen mesh which is easy to be replaced.

The standard configuration

Convey steel pipe: 50A×1M×2 50A×2M×2 50A×3M×32
The variable diameter steel pipe:125A-80A×1M 80A-50A×1M
Bend pipe:R500 50A×900×3 R275 50A×450×2
Slurry pipe:Φ38mm
Die casting aluminum alloy spray gun
Air compressor:380V 3P 400L/min 4KW
The pipe clamp aprons:80A×46 125A×2

Pictures:
