20 Bar Single cylinder piston Mud Slurry Pump SBW50 with small size
easy working
Product Introduction of Mud Slurry Pump SBW50:

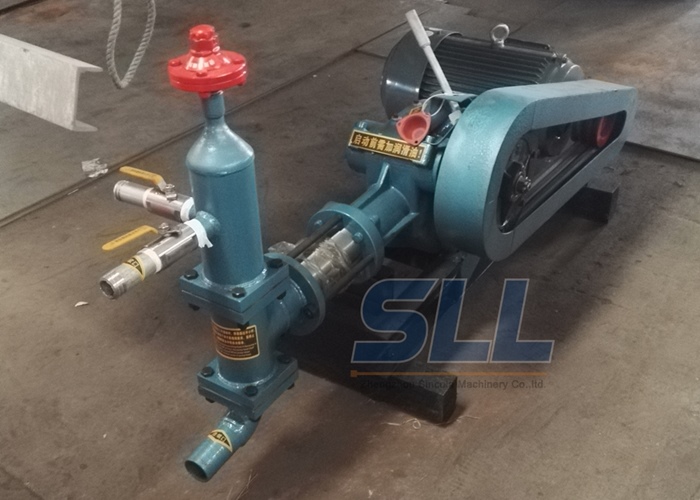

SBW50 Model mud pump is a kind of portable mud pump. The pump is a
horizontal single cylinder reciprocating single acting piston pump,
the pump has the advantages of small volume, light weight, long
service life, simple operation, reliable and flexible, general and
standard parts and other characteristics, light and flexible, easy
to move. Can be used in railway, within the water, metallurgy,
construction, geological industry deep hole 1000m geological
exploration, engineering exploration with pump.
Technical Parameters of the single piston slurry grouting pump:
| Main Parameters | Model |
| SBW50-3 | SBW60-5 | SBW70-8 |
| Cylinder No. (Piece) | 1 | 1 | 2 |
| Cylinder dia. (mm) | 80 | 80 | 80 |
| Piston stroke (mm) | 90 | 73 | 75 |
| Pressure (Mpa) | 3 | 5 | 8 |
| Output capacity (m3/h) | 3 | 3.6 | 4.5 |
| Motor power (KW) | 5.5 | 7.5 | 11 |
| Input speed (r/min) | 1440 | 1440 | 1460 |
| Suction hose ID. (mm) | 51 | 51 | 64 |
| Discharge hose ID. (mm) | 32 | 32 | 38 |
| Max. suction height (m) | 2 | 2 | 2.5 |
| V-belt type | A1880 (3 groove) | B1575 (3 groove) | B2032 (4 groove) |
| Dimensions (mm) | 1500*550*80 | 1600*600*80 | 1200*850*900 |
| Weight (Kg) | 200 | 180 | 490 |
Features of SBW50 Series Slurry Pump:
SBW Series Slurry Pump is single/double cylinder piston type grout
pump.
Compact structure, well sealing performance, high stability and
high pressure.
High quality pump parts, less wearing parts, long service life, low
construction cost.
High pump efficiency, less noise and dust, environmental operation,
easy maintenance.
Application of SBW50 Series Slurry Pump:
SBW Series Slurry Pump is widely used for cement/mortar grouting in
roads, bridges, dams, national defense, mines and other
construction projects.
SBW Series Slurry Pump can be used to grout mortar in prestressed
component engineering.
Vertical and horizontal conveying of mortar in building
construction.
Cement grouting maintenance in sand land, blast furnace, cement
pavement, highway and other projects.
