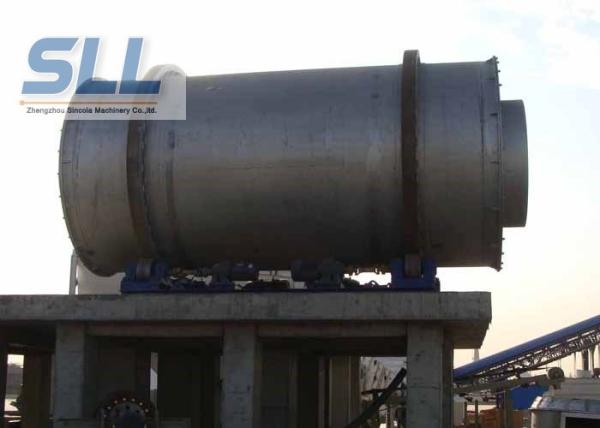

High Efficient Small Sand Dryer Machine With Wear Resistant Manganese Plate

Energy-efficient Sand aggregate dryers, upgrated sand aggregate coolers,silica sand drying system
Brief Introduction	Raw material with 10-25% moisture content is suitable for this dryer,and not sticky for the drum or lifting blade. The temperature of air flow is less than 70 degree. When there is any special requirement for high temperature drying, the front part of inner drum and lifting blade could be replaced by heatproof steel plate. The product moisture content is adjustable according different requests, even below 1-0.5%.
Applications	industrial small silica sand triple pass rotary drum dryer used rotary sand dryer price used for drying certain humidity range granular materials, such as 1. casting sand which used in dry-mixed mortar and foundry industry 2. small granular clay used in construction and cement industry 3. small granular material in chemical industry which no chemical change, not afraid of heat and dust pollution such as coal, blue carbon, fly ash, sand, water slag, river sand, quartz sand, slag, clay etc.
Features	1. The dryer drum made of wear resistant manganese plate, service life 3-4 times than common steel plate
	2. Original moisture contains <15%, after drying final moisture contain 0.5-1%. First choice for cement slag powder, pre-mixed mortar projects.
	3. The thermal efficiency is more than 40% higher than that of traditional single drum dryer
	4. Fuel applicable white coal, bituminous coal, coal gangue, oil, steam. Raw material required <40 mm bulk, aggregate, powder material
	5. reduce 60% working place, 60% civil work compare with normal single drum dryer. Easy operation.
	6. No air leakage phenomenon, solved the sealing problem.
	7. discharge temperature <60 ℃,could storage directly in the silo, no need cooling section.
	8. Outer barrel temperature <60 ℃, the exhaust gas temperature < 120 ℃, dust removal equipment could serve 2 times longer.
	9. reduce 2/3 coal, 40% electric consumption. Need <9kg coal to dry one-ton raw material

Main parameters

Parameters	SS623	SS625	SS6210	SS6220
Drying capacity	1-3 m3/h	4-6 m3/h	10-14 m3/h	20-30 m3/h
Diameter of drum	2200mm	2200mm	2500mm	2600mm
Length	1500mm	2500mm	2700mm	3700mm
Motor power	4kw	5.5kw	4kw*2	5.5kw*2
Reducer model	XWD-5	XWD-5	XWD-5	XWD-5
Speed of drum rotation	4-10 r/min	4-10 r/min	4-10 r/min	4-10 r/min
Moisture of end products	0.1%-0.8%	0.1%-0.8%	0.1%-0.8%	0.1%-0.8%
Max. temperature inside	700-750℃	700-750℃	700-750℃	700-750℃
Outlet temperature	30-60℃	30-60℃	30-60℃	30-60℃
Hot-blast Stove dimensions	1.55m×1.3m×2.18m	2.3m×2m×2.7m	2.3m×2m×2.7m	2.3m×2m×2.7m
Furnace door	450*550 mm	450*550 mm	450*550 mm	450*550 mm
Quicksand tube	φ165×1600 mm	φ273×1800 mm	φ300×1800 mm	φ400×2000 mm
Coal consumption	7-10 kg/ per ton sand	7-10 kg/ per ton sand	7-10 kg/ per ton sand	7-10 kg/ per ton sand
