Brand Name : | SINCOLA |
Model Number : | SPZ series |
Certification : | CE Certificate , ISO |
Price : | USD1500 - USD8000 per set |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 20000 pieces per months |
Delivery Time : | 3 working days |
Dry Mix Shotcrete Machine, also name Gunite machine, uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.
Model | SPZ-3 | SPZ-5 | SPZ-7 | SPZ-9 |
Output (m3/h) | 3 m3/h | 5.5 m3/h | 7 m3/h | 9 m3/h |
Max.conv.dist | 200 | 200 | 150 | 150 |
Water cement ratio | < 0.4 | < 0.4 | < 0.4 | < 0.35 |
Max.Aggregate.size | 10mm | 15mm | 20mm | 20mm |
Hose inner size | φ42/50 mm | φ50 mm | Φ57 mm | φ60 mm |
Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min | 10-12 m3/min |
Motor power | 4 kW / (Diesel) | 5.5 kW / (Diesel 22hp) | 7.5 kW / (Diesel 22hp) | 7.5 kW / (Diesel 22hp) |
Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1420*1120*810mm | 1500x1320x830mm |
Weight | 520kg | 780kg | 830kg | 980kg |
Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | |||
Basic chassis | ①.Tyre ②.Skid ③.Rail-wheel | |||
Driving Type | Electric Motor,Diesel Engine,Air Motor. |
1. SPZ Series Dry Shotcrete Machine can be driven by electric motor, diesel engine, and pneumatic motor.
2. Dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, control panel, electric motor (diesel engine, or pneumatic motor) etc.
3. Dry Shotcrete Machine have advanced technology, compact structure, convenient operation, stable performance and long service life.

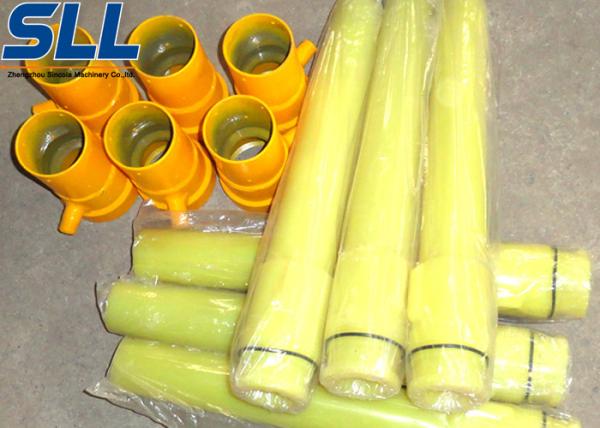

We are long terms supply All kinds of shotcrete machine accessories.
![]() |
