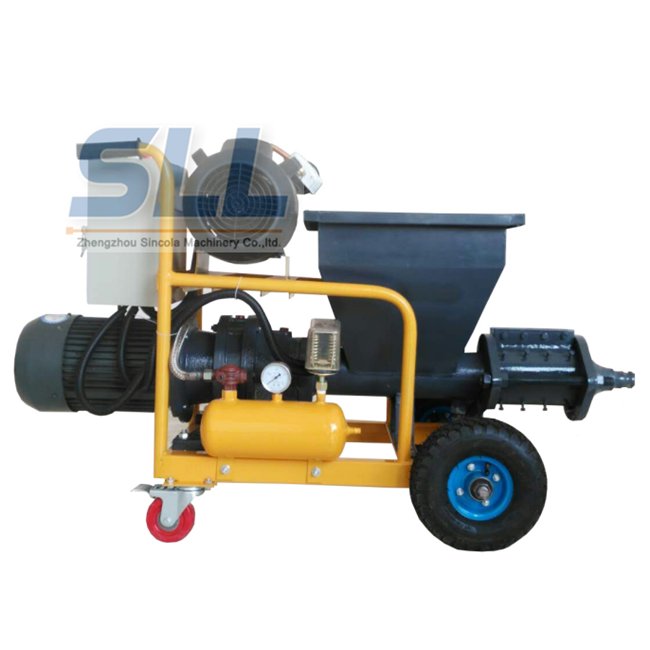

Automatic wall cement mortar sprayer tools clean wall tools cement
plastering machine
Introductions
The cement sprayer can save water, save material, but lower cost,
simple operation, no need scaffolding, don't have to mobile
devices, need not repair the grounds, free to spray Angle, roof,
with fast speed, high efficiency, low labor intensity, a
multi-function sprayer can easily spray per hour 1.5 cm thick
concrete area of 200 square meters.Setting wall surface roughening
shotcrete, aerated block walls of hair spray can easily do it every
day more than 10000 square meters.
Application
Building internal and external walls, ceiling roof, wall steel mesh
reinforcement, wall ramming starting point, high speed river bank
slope protection, tunnel, subway, garden rockery, brick model,
steel structure protection layer, etc.
1.The Plastering Machine is a new desinged multi-functional
plastering equipment.
2.The Plastering Machine can be used for pumping and spraying
ready-mixed mortar material, such as cement mortar, lime plaster,
gypsum plaster, masonry mortar.
3.The Plastering Machine can be used for plastering fluid
materials, such as thermal insulation material of walls, refractory
material, fire-proof material, water-proof material, acoustic
material, water soluble etc.
Parameter:
| Model | KLW-120 Plaster Machine |
| Capacity | 100~120m2/h(mortar) 200~3002/h(putty) 3m3/h(grouting) |
| Rated working pressure | 4~6MPa |
| Motor power | 4.4kw |
| Main electricity motor | 3phase, 380v, 5.5kw |
| Horizontal delivery dist. | 30m |
| Max. aggregate size | 5mm |
| Vertical conveying dist. | 10~15m(mortar)/25~30m(putty) |
| Dimensions | 1300*650*900 (mm ) |
Features:
1. Small volume, light weight, convenient in indoor and outdoor
mobile, construction;
2. Screw pump for pumping materials, guarantee the ejected material
evenly, continuous;
3. Machine with high efficiency, low noise;
4. Module design, simple operation, easy maintenance.
5. The rotor/stator pump ensures the material is pumped and sprayed
out continuously and evenly.
Working Principle:
1. Turn on the power, press the button, the screw pump that is
working. If you turn the reverse, press the stop button to stop.
Adjust the power and down at the beginning, change the good turn.
Such as the opposite direction is not expected.
2. In the delivery hose into the injection of a small amount of
water, or with a screw pump water wet delivery hose, and then the
tube of water gradually discharged from the export. Drainage should
be clean, the tube shall not be retained
3. Connect the duct to the mortar tube side by side. The air duct
is connected to the gun.
4. Mix the material evenly into the hopper (can be used with the
powder machine).
5. Press the start button to start the shot. In the work, combined
with the regulation of air volume, can make the best spray quality.
6. Adjustable speed of the screw pump, the output flow of 0-8
liters / min, in the work, as long as the return adjust to the
output speed that construction requirements.
7. The mixing material must be continuously added to the hopper to
ensure the continuity of the spray.
8.Spray work to be suspended, press the stop button can be, can
make the operation more convenient, you can use the following
methods for remote control: the middle of the box to the left is
the manual control switch.
