High Quality Wall Mortar Gun Cement Mortar Spraying Machine cement plastering tool

Introduction:

SPT30 wet mortar spraying machine is designed according to the actual needs of the construction site of a kind of economic practicability mortar spraying machine. Used to have water mixing good, be pumping slurry pumping, spraying.New design of SPT30 mortar spraying machine smaller volume, lighter weight, more suitable for the construction site.Pumping and spraying integration design, work efficient, quiet, continuous, uniform coating, makes SPT30 sprayer be the first choice of the ordinary mortar spraying equipment.

Features:

1. Multi-functional equipment with mixing, pumping, plastering device.The spray speed,capacity, pressure are adjustable.

2. Easy to use, high speed, province materials, artificial and cheaper, one machine with three people,

only 150 square/hour (thickness 2 cm).

3. Owing to their small and handy dimensions and low weights, the rendering spraying machine SPT30 can be move easily and Conveniently in the spraying the wall or other process.

4.The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.

Application:

1.The Plastering Machine is a new desinged multi-functional plastering equipment.

2.SPT30 mortar spraying machine is quite suitable for pumping the wet mix mortar and spraying the walls, Widely used in construction, Like pump and spray Insulating plasters, Cement mortars, Gypsum plasters, Self-leveling floor screeds, Lime plasters, Masonry mortars, fireproof paint.

3.The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of

walls, refractory material, fire-proof material, water-proof material, acoustic material, water soluble etc.

Parameter:

Return on investment analysis;

The automatic mortar spraying machine is a spraying unit with high reliable, well-adapted, sturdy and durable, easy operated. Only three peopled are needed for the construction, one conveys the raw materials, one controls the spraying gun, and the third one for assistant work (ex. move the tube). While the water adding, mixing and conveying of the materials is completed automatically by the machine. Compared the traditional manual construction, it can save the labor, money and time. Additional, the project quality is much better than manual construction. The spraying pump equipped with safety operating control system, and it would stop no matter which parts have fault, which can guarantee the safety of the machine as well as the operator.

When finishing work, the machine should be cleaned. Clean the material in the hopper with water through and out of the hose, until the clean water flow out. Then dismantle the hose, at last hung the hose vertically, clear the sand in the inner surface of the hose with clean water.

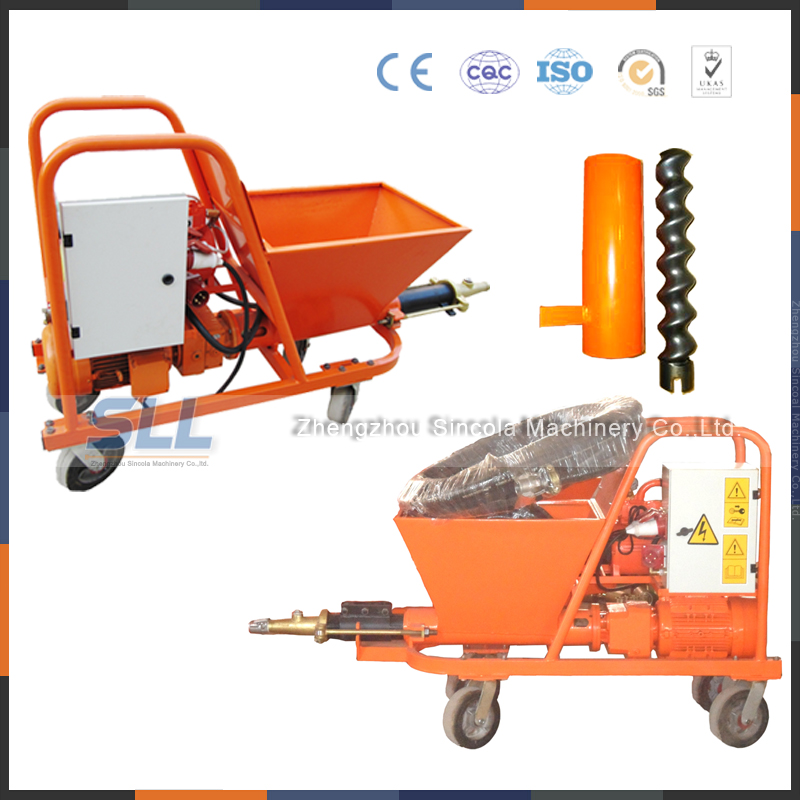

Pictures:
