Flexible movement Full hydraulic Mini Concrete Shotcrete Pump
Machine with small size
Detailed Description of Full hydraulic Mini Concrete Shotcrete
Pump:

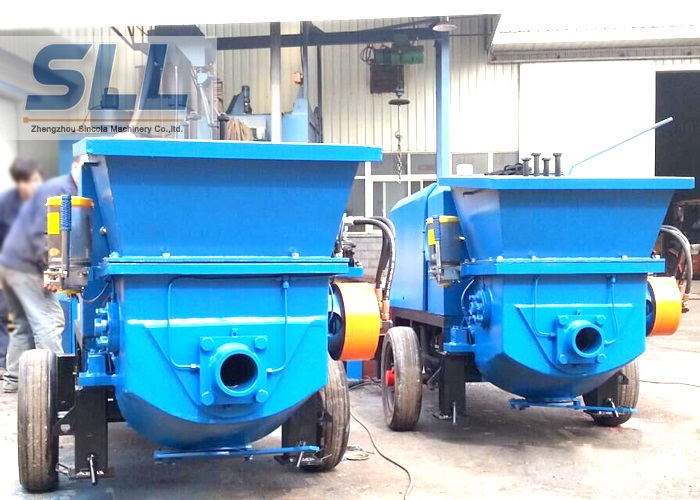

SPB Full Hydraulic Mini Shotcrete Pump Machine
high efficiency: full hydraulic pumping technical, reliable
performance.
long spraying distance: 150m horizontally and 80m vertically.
continuously adjustable flux and accelerator adding volume.
low fitting consumption, long service life of wearing parts.
flexible movement, convenient operation and maintenance.
Technical specification of Piston wet shotcrete machine:
| Model | Unit | SPB6I | SPB8I |
| Capacity | m3/h | 6 | 8 |
| Max. aggregate size | mm | 15 | 15 |
| Fineness modulus | / | ≥2.5 | ≥2.5 |
| Delivery pipe | mm | DN100/DN80 | DN100/DN80 |
| Concrete slump | cm | 10~18 | 10~18 |
| Max. horizontally conveying dist. | m | 120 | 150 |
| Max. vertically conveying dist. | m | 50 | 80 |
| Main motor power | kw | 15 | 22 |
| Max. operating oil pressure | M pa | 12 | 19 |
| Max. output pressure | M pa | 5 | 8 |
| Feeding height | mm | 1100 | 1100 |
| Dimensions (L×W×H) | mm | 2990×1200×1140 | 2990×1200×1140 |
| Weight | kg | 1600 | 1600 |
What else can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor as your request.
3.Choose different wheels according to your needs.
Application of Full hydraulic Mini Concrete Shotcrete Pump
convey fine aggregate concrete and mortar for high buildings.
grout heat-insulated lightweight foamed cement, mortar floor
heating, and self leveling for ground architecture.
spray plain concrete and fiber concrete in engineering
construction.
convey and spray refractory and thermal insulation material.
spray afforestation soil in ecological environment construction.
pressure perfussion for foundation piles, back fill in over broken
tunnels, railway slope supporting, and disaster management.
FAQ
Anti Explosion Shotcrete Machine New Shotcrete Nozzle Dedusting
Shotcrete Machine
1. Q: Which model should we choose?
A: We have many models for your choice. Before suitable model is
recommended, please tell us the application, materials, output and
pressure you want.
2. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your actual
requirements.
3. Q: Do I need to know technical skills to operate this machine?
A: No. This machine has no professional requirements for the
operator. However, we provide technical instruction for your
backup.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for
online instruction. Also, our engineers are available to service
overseas.
5.Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It
depends for mass production.
6.Q: How about the package?
A: We have fumigation-free wooden case to protect the machine from
damage during the long-distance delivery.
7.Q :How should I pay for you if I place this order?
A: Generally, TT, 30% deposit 70% before shipment.
Company Information:
Zhengzhou Sincola Machinery Co.,Ltd is one of the leading
professional manufacturers of cement mortar concrete mix pump
grouting spraying machineriy, which was established in 2001,
located in Huiji District in the northwest suburbs of
ZHENGZHOU,focused on the design, R&D, Processing & commission,
installation & commission and technical service in area of
construction machines for the long-term.
Our main products are Shotcrete Machine (dry mix shotcrete machine
SPZ-3,SPZ-5,SPZ-9, wet shotcrete machine), Shotcrete Pump, Concrete
Pump, Concrete Mixer Pump, Concrete Mixer, Mortar Mixer, Cement
Grouting Mixer, Cement Grouting Pump(Low pressure, high pressure),
Mortar Spraying Machine, Mortar Pump,Putty Spraying
Machine,Automatic Wall Plastering Render Machine, Industry
Peristaltic Pump / Hose Pump etc .
