Diesel / electric hose squeeze pump 0.01 - 50 m3 / h variable
frequency gearbox
Description:
SH hose squeeze peristaltic pump Is Suitable for Handling
Aggressive, High Viscosity, High Density Products, Such as
Corrosive Acids, Gaseous Liquids, Sand/Cement Mortar, etc. It Is
Used for Dosing Pump With 1% Repeat Precision.
We have now developed full series of products with tens of models,
working pressure from 0.6-3Mpa, output from 0.01-50m3/h, NR, NBR
and EPDM squeeze hoses are available options for customization. SH
series hose squeeze peristaltic pump include SH10, SH15, SH25,
SH32, SH38, SH50, SH65, SH76, SH100 ects. For more information,
please contact us.
We are an main supplier of pump heads for one of world's famous
hose pump manufacturer in China(OEM). Our qualified hose pumps have
been exporting to USA, Canada, Australia, Malaysia... we are also
the qualified supplier of alibaba, China Sinopec and China TBM
machine manufacturer.
Application:
SH series industrial squeeze hose peristaltic pump consists mainly
of pump house, rotor, roller, idle roller, squeeze tube and driving
unit. The squeeze hose is U-shape in pump house, when rotor drives
roller to rotate, hose is deformed. After the roller rotate, the
deformed hose recover by its elasticity. Thus the negative pressure
in this hose is generated, sucking slurries, and discharging
through outlet under roller’s push, finally forms pressure
conveying of slurries.
The squeeze peristaltic hose pump are widely applied in
architecture, underground construction, pertrochemical industry,
metallurgy, food industry, ceramic, mining, water treatment,
pharmacy and papermaking.
Features:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
Paremeter:
| Pump Model | Output (L/h) | Pressure (MPa) | Hose ID (mm) | Rev. (r/min) | Max. ParticleDia.(mm) | Max. Suct.Left (m) | Motor Power (kW) |
| SH10 | 60 | 0.6 | 10 | 45 | 2 | 2 | 0.37 |
| SH10B | 100 | 0.6 | 10 | 80 | 2 | 2 | 0.37 |
| SH15 | 210 | 0.6 | 15 | 45 | 2 | 2 | 0.55 |
| SH15B | 300 | 0.6 | 15 | 75 | 2 | 2 | 0.55 |
| SH25 | 800 | 1.5 | 25 | 50 | 3 | 3 | 1.1 |
| SH25B | 1300 | 1.5 | 25 | 80 | 3 | 3 | 1.5 |
| SH32 | 1300 | 1.5 | 32 | 50 | 3 | 4 | 2.2 |
| SH32B | 1800 | 1.5 | 32 | 75 | 3 | 4 | 2.2 |
| SH38 | 2000 | 1.5 | 38 | 40 | 5 | 4 | 2.2 |
| SH38B | 2700 | 1.5 | 38 | 55 | 5 | 4 | 3 |
| SH38C | 3500 | 1.5 | 38 | 70 | 5 | 4 | 4 |
| SH50-558 | 4200 | 1.5 | 51 | 35 | 6 | 5 | 4 |
| SH50-558B | 5400 | 1.5 | 51 | 45 | 6 | 5 | 5.5 |
| SH50-680 | 6300 | 1.5 | 51 | 35 | 6 | 5 | 7.5 |
| SH50-680B | 8000 | 1.5 | 51 | 45 | 6 | 5 | 7.5 |
| SH65-680 | 9200 | 1.2 | 64 | 40 | 8 | 5 | 7.5 |
| SH65-680B | 12000 | 1.5 | 64 | 45 | 8 | 5 | 11 |
| SH65-770 | 13500 | 1.2 | 64 | 45 | 8 | 5 | 11 |
| SH65-770B | 16500 | 1 | 64 | 55 | 8 | 5 | 11 |
| SH76-770 | 18000 | 1 | 76 | 45 | 10 | 5 | 11 |
| SH76-770B | 22000 | 1 | 76 | 55 | 10 | 5 | 15 |
| SH76-915 | 24000 | 1 | 76 | 50 | 10 | 5 | 15 |
| SH76-915B | 28000 | 1 | 76 | 40 | 10 | 5 | 18 |
| SH100 | 33500 | 1 | 102 | 35 | 15 | 5 | 18 |
| SH100B | 42000 | 0.75 | 102 | 45 | 15 | 5 | 18 |
| It can be produced according to the especcial requirement of
client. |
| The pump's output is determined with water. |
The electric motor in the above list is 380V50Hz,IP55.
The output of the pumps in the above list is determined against
water.
The client can make request of the technical data of the pump body
and hose.
According to the conveying medium, the squeeze hoses are of
wearable, alkali proof, acidresistant, organic solvent resistant
etc.
The exact overall measurement and weight depends on the exact type
and installation method.

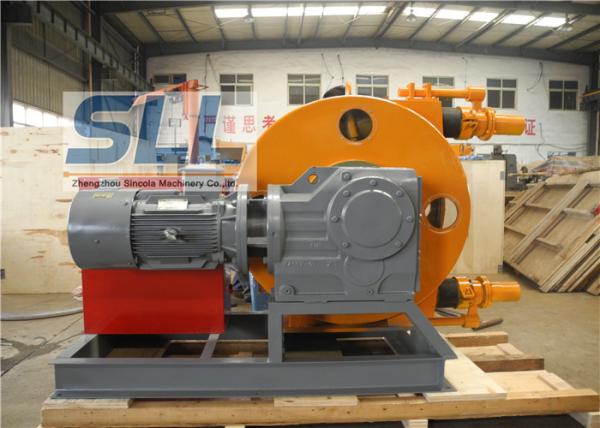

Pictures:
