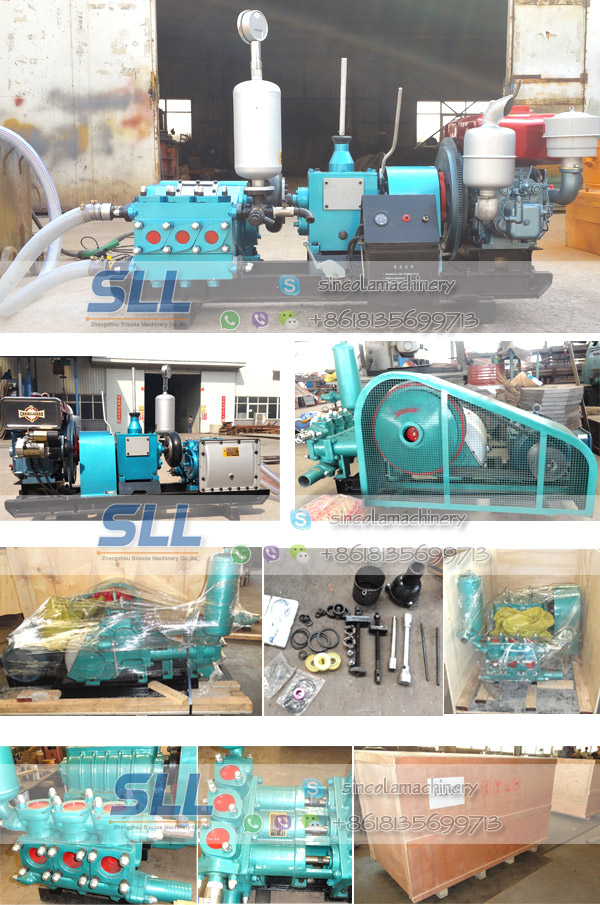

High pressure hydraulic plunger piston diesel engine electric three
cylinders mine coal sewage mud tunnel sludge pump
High pressure hydraulic plunger piston diesel engine electric three
cylinders mine coal sewage mud tunnel sludge pump is a kind of
portable mud pump. High pressure hydraulic plunger piston diesel
engine electric three cylinders mine coal sewage mud tunnel sludge
pump is a horizontal three cylinder reciprocating single acting
piston pump, has four flow and four kinds of pressure, flow and
pressure range, the pump has the advantages of small volume, light
weight, long service life, simple operation, reliable and flexible,
general and standard partsand other characteristics, light and
flexible, easy to move. Can be used in railway, within the water,
metallurgy, construction, geological industrydeep hole 1000m
geological exploration, engineering exploration withpump.
Parameters of Triplex Piston Pump
| Model | Pump speed
(r/min) | Output
(L/min) | Pressure
(Mpa) | Input speed
(r/min) | Inlet pipe ID
(mm) | Outlet pipe ID
(mm) | Motor power
(KW) | Dimension
(mm) | Weight
(kg) |
SBW150
| 222 | 150 | 1.8 | 580
| 51
| 25-32
| 7.5
| 1155*795
*995
| 500
|
| 130 | 90 | 3.2 |
| 86 | 58 | 4.8 |
| 57 | 38 | 7 |
| 183 | 125 | 2.3 |
| 107 | 72 | 4 |
| 71 | 47 | 6 |
| 47 | 32 | 7 |
SBW160
| 200 | 160 | 2.5 | 610
| 51
| 32
| 11
| 1100*995
*650
| 700
|
| 132 | 107 | 4 |
| 83 | 67 | 6.5 |
| 55 | 44 | 10 |
SBW250
| 200 | 250 | 2.5 | 500
| 76
| 51
| 15
| 1100*995
*650
| 760
|
| 116 | 145 | 4.5 |
| 72 | 90 | 6 |
| 42 | 42 | 6 |
| BW320 | 214 | 320 | 4.0 | 500 | 76 | 51 | 30 | 1280*855
*750
| 650 (no motor and air chamber) |
| 153 | 230 | 5.0 |
| 109 | 165 | 6.0 |
| 78 | 118 | 8.0 |
global
agent recruitment.pdf
1,Compact structure, light weight, small volume, beautiful
appearance, is driven by a hydraulic motor, motor, diesel engine
2,The design on the use of new ideas, new structure, new materials,
new technology;
3,Horizontal pump to improve standardization, seriation,
generalization,crankshaft, connecting rod body, the cross head, the
pump head and some other components related to serialization and
the universal, the other components of the reduced species
4,Loss of long life, high reliability
Product Description
mud pump for the horizontal three-cylinder reciprocating
single-acting piston pump. Mainly used for supporting the core
drilling drilling mud, can also be used for other aspects of
grouting, mine sewage and long-distance water supply and other
purposes.
Introduction of product
Industrial High pressure hydraulic plunger piston diesel engine electric
three cylinders mine coal sewage mud tunnel sludge pump an be used in the following industries:
1. Projects: Construction drilling of the projects e.g.
prospection, geotechnical investigation (geological exploring),
railway, road, port, bridge, water conservancy and hydropower,
tunnel, well, industrial and civil construction
River sand mud pump/Electric motor power slurry pump
2. Exploration: Coal mining exploration, Ore exploration
River sand mud pump/Electric motor power slurry pump
3. Water well : Small hole diameter water well drilling
River sand mud pump/Electric motor power slurry pump
4. Pipe-installing : Geothermal pipe-installing for heat pump
5. Foundation piling: Small-diameter hole foundation piling
drilling.
