    Stainless Steel Material Cement Storage Silo Accessories Dust Filter Production Model

    Ask Lasest Price
    Brand Name : SINCOLA
    Model Number : ss
    Certification : CE,ISO,BV
    Price : 30-500usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000sets per week
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Stainless Steel Material Cement Storage Silo Accessories Dust Filter Production Model

    All kinds of cement grain silo accessories dust filter production model for sale

    broken arch --DL vibrating bin aeratorAir consumption per cycle: 0.12Nm3/h(0.07cfm)
    Working pressure:0.2bar(3 PSI)
    Diameter: 160*95*35mm
    Application: Cement, lime and powder material etc.
    Level indicatorContact capacity: 250 vac / 10 a SPDT (single pole double throw)
    Power: 4 w
    The blade speed: 1 RPM (revolutions per minute)
    Moment: 1.0 kg * cm
    Specific gravity: acuity 0.5 g/cm3
    Working temperature: - 10 ℃ -- 80 ℃ (up to 400 ℃)
    Insulation resistance: 100 m Ω or higher
    Dielectric strength: 1500 v * 1 min
    Protection grade: IP65
    Leaf blade material: SUS304 SUS316
    Voltage: 220V/24DC 12V/24V
    DN250 Double flange manual butterfly-valve

    Inner diameter: Φ250mm
    Connect diameter: Φ300mm

    Outside diameter:Φ350*115mm
    Max. pressure: 2.5bar(36psi)
    Working temperature: -10-80℃
    Valve board Material: aluminum alloy
    Valve base material: aluminum alloy Not automatic but hand-actuated

    relief valvePositive pressure range:280_1000H2O
    Negative pressure range: -20_-120H2O
    Max. Air capacity: 9m3/h
    Max. Negative setting pressure: -0.002bar

    Max. positive pressure: 0.05bar
    Material: Carbon Steel
    Installation Diameter: Φ273mm
    Outsize: 370*400mm
    Room No.: 1
    Thickness of steel: 2mm
    Connection type: Clamp connection,with sealing rings

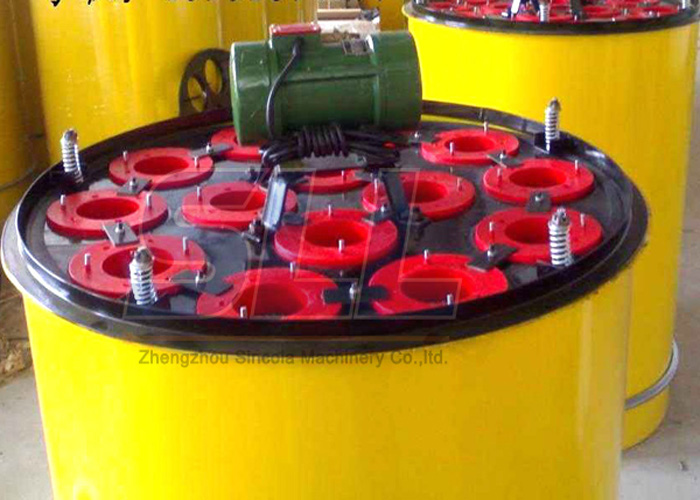

    Cement silo filterDiamension: Φ800*1630mm
    Qty of cartridge: 14
    Cartridge size: Φ140*900mm
    Fi
    ltering area: 24m2
    The exhaust air rate:1500m3/h
    Filtration efficiency:>99.9%
    Cleaning method:intermittent vibrating cleaning

    Power:500w
    Voltage: 380V/60Hz
    The structure of the form:cylindrical
    Connection: clamp connection(with seal)
    Sheel material: carbon steel
    Weight:100kg



    spare parts for cement silo,relief valve,level indicator,dust filter,discharging valve,flow aid system
