Speed Triple SBW160-10 Mud Slurry Pump four shaft adjustable
pressure flow

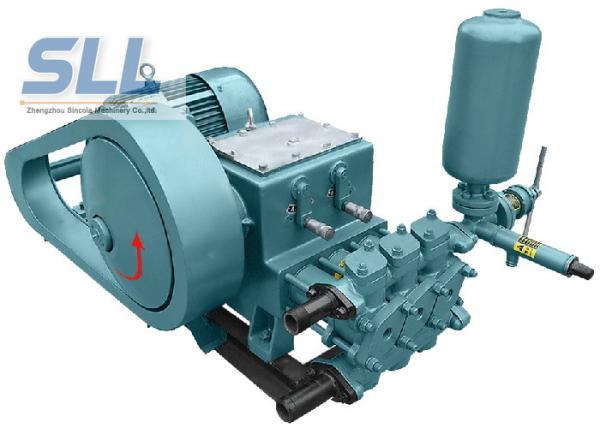

Product Introduction of SBW160 piston cement slurry mud pump:
SBW160 mud pump is a kind of portable mud pump. The pump is a
horizontal three cylinder reciprocating single acting piston pump,
has four flow and four kinds of pressure, flow and pressure range,
the pump has the advantages of small volume, light weight, long
service life, simple operation, reliable and flexible, general and
standard parts and other characteristics, light and flexible, easy
to move. Can be used in railway, within the water, metallurgy,
construction, geological industry deep hole 1000m geological
exploration, engineering exploration with pump.
Technical Parameters of the slurry grouting pump:
| Model | Stroke (mm) | Cylinder ID. (mm) | Pump speed (r/min) | Capacity (L/min) | Pressure (Mpa) | Suction hose ID. (mm) | Discharge hose ID. (mm) | Motor power (KW) | Weight (kg) |
| SBW150 | 70 | 70 | 222 | 150 | 1.8 | 51 | 25-32 | 7.5 | 500 |
| 130 | 90 | 3.2 |
| 86 | 58 | 4.8 |
| 57 | 38 | 7 |
| 183 | 125 | 2.3 |
| 107 | 72 | 4 |
| 71 | 47 | 6 |
| 47 | 32 | 7 |
| SBW160 | 70 | 70 | 200 | 160 | 2.5 | 51 | 32 | 11 | 700 |
| 132 | 107 | 4 |
| 83 | 67 | 6.5 |
| 55 | 44 | 10 |
| SBW250 | 100 | 80 | 200 | 250 | 2.5 | 76 | 51 | 15 | 760 |
| 116 | 145 | 4.5 |
| 72 | 90 | 6 |
| 42 | 42 | 6 |
| SBW320 | 110 | 80 | 214 | 320 | 4 | 76 | 51 | 30 | 650 |
| 153 | 230 | 5 |
| 109 | 165 | 6 |
| 78 | 118 | 8 |
Features of SBW cement slurry pump:
1. Cement mud pump is single cylinder piston type grout pump.
2. Compact structure, well sealing performance, high stability and
high pressure.
3. High quality pump parts, less wearing parts, long service life,
low construction cost.
4. High pump efficiency, less noise and dust, environmental
operation, easy maintenance.
Advantages of SBW160 mud grouting pump:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and
get benefits compensation.
Application of SBW cement slurry grouting pump:
1. Slurry mud pump is widely used for cement/mortar grouting in
roads, bridges, dams, national defense, mines and other
construction projects.
2. SBW cement slurry mud pump can be used to grout mortar in
prestressed component engineering.
3. vertical and horizontal conveying of mortar in building
construction.
4. cement grouting maintenance in sand land, blast furnace, cement
pavement, highway and other projects.
FAQ:
Q: Are you a factory or trading company?
A: We are a manufacturer with export license, you could get factory
price from us.
Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
Main Products:
Wet/dry shotcrete machine, concrete/shotcrete pump, grouting
pump,cement pump, mortar pump, slurry pump, hose
pump, cement/concrete mixer, concrete foaming machine, plastering
machine etc.
Welcome inquiry.
