    High Working Pressure Mortar Mixer Pump Machine Dry Cement Pump CE Approved

    Ask Lasest Price
    Brand Name : SINCOLA
    Model Number : SG50-40
    Certification : CE
    Price : USD3990-6790/set
    Payment Terms : T/T, L/C, Western Union and so on
    Supply Ability : 100 Sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Working Pressure Mortar Mixer Pump Machine Dry Cement Pump CE Approved

    High working pressure cement mortar pump applied in pumping mortar


    Introduction:


    SG50-40 type piston plaster mortar pump is a kind of piston and ball controlling pump, and the conveying line, piston and cylinder is specially designed and processed, so this mortar pump is workable for high-pressure grouting/spraying mortar (the mixture of sand: cement: water). And is successfully used in sealing, strengthening, stabilizing of rock and soil, tunneling, building hydro-power project, etc, and also used for spraying mortar in construction and 3D Panel, etc.


    Features:


    • Single piston with single-acting.
    • Ball valve
    • Mechanical transmission
    • Integrate pump head and hopper; Prevent eduction and deposition together with the paddle agitating

    Applications:


    Single Cylinder Mortar Pump is widely used for its convenient maintenance.it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.
    The SG5040 Mortar Pump is available in the following versions.
    BASIC Electric drive
    DIESEL engine drive


    Parameter:


    Model:SG5040
    Output50 L/min
    Cylinder Diaφ 90 mm
    Working Pressure4 MPa(40bar, 580psi)
    Piston stroke85 mm
    Piston Speed95 /min
    Inlet diameter75 mm
    Outlet diameter50 mm
    Max. Aggregate. size6 mm
    Cement/Sand≥ 1/3
    Power5.5 kW(Electric)/10hp(Diesel)
    Overall Dimensions1610× 1024× 900 mm
    Weight300 kg

    FAQ:


    1. How long hose does the mortar pump contain?

    One root 20 meters convey hose.


    2. Can the mortar pump be used for spraying?

    Yes. It is ok to add a air compressor and a nozzle.


    3. If used for spraying, How far is it can spray level? How high can spray up?

    Suggested not too high if spraying construction, uniform spray is not easy; The best for inside layer construction. It is ok that spray height of 10 meters; The pipe length is not recommended more than 40 meters; The reason is not pump pressure not enough, but the longer the pipe, the higher the nozzle discharge uniformity more bad.


    4. This machine can spray mixing good wet cement and sand, used to spray the wall; Is it can be mixed with water in the machine, or we outside mix well then feed into the machine?

    Stir well outside


    5. Can this machine to spray dry sand?

    No, it can not.


    6.Do you have user manual of the machine? How to use it? How to clean it?

    Yes, we have. All can be seen in the user manual, and will send to your email later.


    7.What are the wearing parts and spare parts for the machine?

    Sealing element


    8.What is the difference between single cylinder and double cylinder?

    Single cylinder pressure fluctuation is large, double cylinder pressure fluctuation is small; Fluctuation little conveying distance long.


    9. Do you have diesel type driven?

    Yes, the machine has electric and diesel type.


    10. Can we use our own motor for the machine?

    Only SG5040 that you can use your own motor. Other type mortar pump has their dedicated motors.


    11. What is the manufacturing days of the mortar pump?

    It is one week for the SG5040. Others need to confirm after knowing the type and voltage.


    Pictures:



    Mortar pump with high pressure air compressor

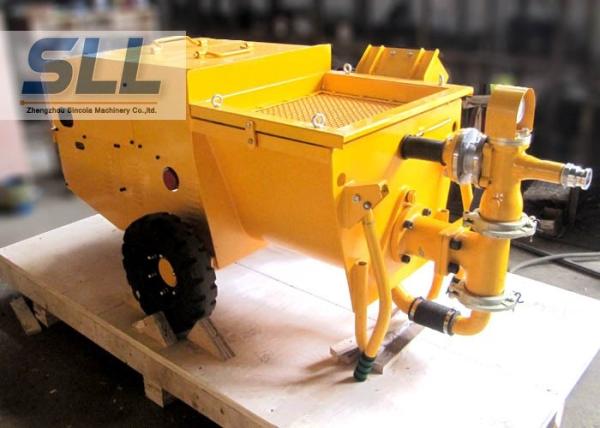

    Cusomer customized special SG50-40

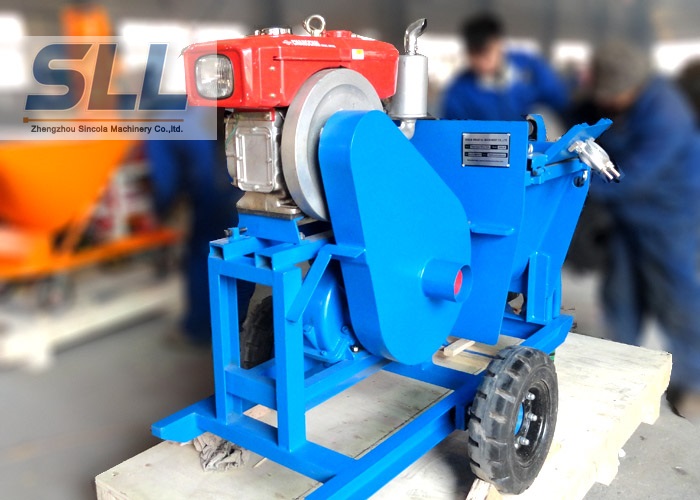

    Diesel model with wheels for chose
